Selco M8100.0030 Synchroscope

Selco M8100.0030 Synchroscope
Inquiry
Selco M8100.0030 Synchroscope
  • Stock: Inquiry
  • Brand: DEHN
  • Model: CPCB-O-08
Rs112,500/-

OVERVIEW:

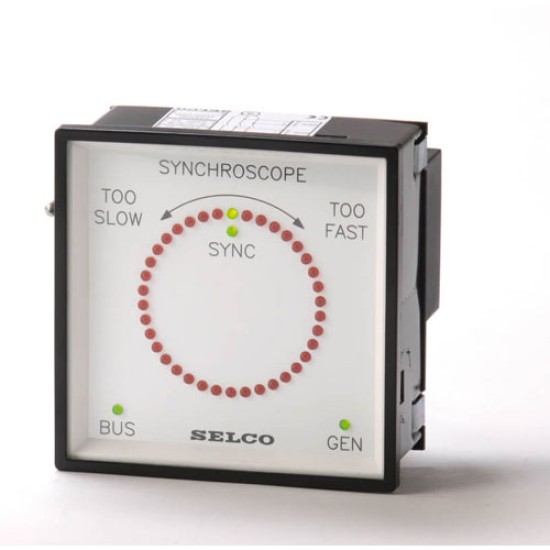

The M8100 Synchroscope provides illuminated indication of the frequency and phase deviation between voltages on two separate AC systems (e.g. a generator and a busbar). The M8100 will also indicate whether or not the two systems are live.


A moving light dot indicates the frequency deviation. The magnitude of the frequency deviation is indicated by the speed and direction of the movement.


Clockwise movement indicates that the frequency is too high on the incoming system. Counter clockwise movement indicates that the frequency is too low. A steady light dot at 6 o’clock position indicates zero frequency deviation and 180 degrees phase deviation. Exact synchronization. frequency and phase accordance is achieved when the light dot is steady at the 12 o’clock position (when the green LEDs ignite).


The M8100 scale is made up from 38 bright red LEDs. The resolution provided by the 38 LEDs is almost as fine as a pointer synchroscope, however the LED based design is far better at withstanding environmental influence from vibration, temperature and humidity.


Features:


  • Same accuracy as pointer synchroscope
  • 38 illuminated points (LEDs)
  • Indication and bus and generator voltage
  • Fully insulated voltage inputs
  • Optional closure relay
  • 50 hour burn-in before test
  • Certified for marine use


Document:


POWER
Consumption2 x 3VA max
VoltageDifference : 10 - 20%
Summary
Voltage range110%
Weight0.7kg
HARDWARE FEATURES
Output VoltageMax. ±6V DC
Supply Voltage415/480V.
TECHNICAL SPECIFICATION
Maximum Voltage660V
Operating Temperature-20°C to +70°C
General Specification
ContactsRating : AC: 250V, 1.2V, 125VA, DC: 30V, 1A, 30W
FrequencyDifference : 0.15 - 0.3Hz Combined setting
ModelM8100.0030
TypeSynchroscope.
Dimensions96 x 96 x 80mm (H x W x D)
WIRELESS FEATURES
Frequency Range35 - 70Hz
