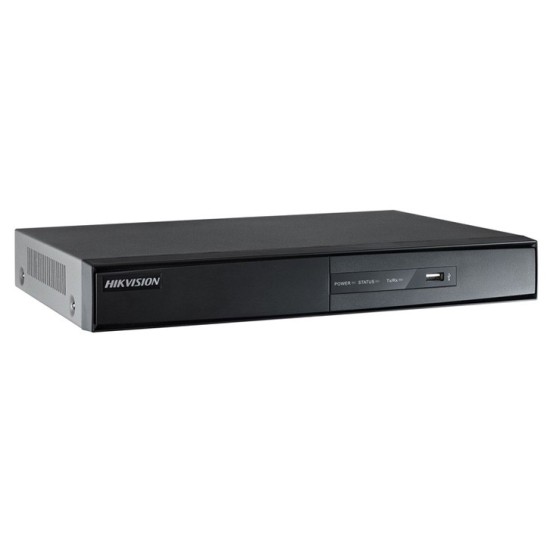

HIKVISION DS-7608HI-ST Embedded Hybrid DVR

HIKVISION DS-7608HI-ST Embedded Hybrid DVR
HIKVISION DS-7608HI-ST Embedded Hybrid DVR
  • Stock: In Stock
  • Brand: Hikvision
  • Model: NSND-36
Rs23,920/-

FEATURE:


  • H.264 video compression
  • Third-party network cameras supported
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • 4/8/16-ch synchronous playback
  • HDD quota and group management

Summary
Playback Resolution5MP/3MP/1080p/UXGA/720P/WD1/4CIF/VGA/DCIF/2CIF/CIF/QCIF
Power ConsumptionMax. 10W
WeightApprox. 2 kg / 4.4 lb (without hard disk)
Interface
Network Interface1, 10M/100/1000M self-adaptive Ethernet interface
Serial Interface1 RS-485 interface, half-duplex
USB Interface2, USB2.0
Output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA Output1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
General Specification
Chassis1U chassis
Frame RateMain stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N)
Recording ResolutionMain stream: WD1 / 4CIF / 2CIF / CIF / QCIF Sub-stream: CIF / QCIF
Dimensions445 × 290 × 45 mm
Input
Analog Video Input8-ch
Audio CompressionOggVorbis
Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
IP Video InputUp to 32-ch
Video CompressionH.264
