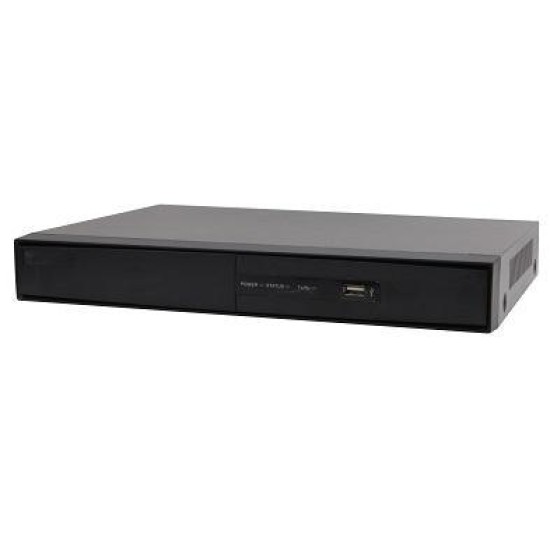

HIKVISION DS-7208HQHI-F1/N Turbo HD DVR

HIKVISION DS-7208HQHI-F1/N Turbo HD DVR
HIKVISION DS-7208HQHI-F1/N Turbo HD DVR
HIKVISION DS-7208HQHI-F1/N Turbo HD DVR
HIKVISION DS-7208HQHI-F1/N Turbo HD DVR
HIKVISION DS-7208HQHI-F1/N Turbo HD DVR
  • Stock: In Stock
  • Brand: Hikvision
  • Model: NSND-17
Rs13,513/-

FEATURE:


  • H.264 ,H.264+& Dual-stream video compression
  • Support  HD-TVI, AHD and analog cameras with adaptive access
  • Up to 3 MP resolution for recording of the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N
  • Support 1080P lite mode enabled to realize the real-time 1080P lite and 720P lite resolution
  • Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7204/7208HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F1/N
  • Long transmission distance over coax cable
  • Up  to 4/8-ch synchronous playback at 1080p resolution
  • Playback at up to 256X speed.

POWER
Consumption≤ 20W(without hard disks)
Summary
CapacityUp to 6 TB capacity for each disk
Playback Resolution3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Weight≤2 kg(4.4lb)
HARDWARE FEATURES
Network protocolsTCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Working Humidity10% ~ 90%
Power Supply12V DC
Interface
Audio Input InterfaceRCA (2.0 Vp-p, 1 kΩ)
Network Interface1; 10M / 100M self-adaptive Ethernet interface
Serial Interface1; standard RS-485 serial interface, half-duplex
USB Interface2 USB 2.0 Interfaces
Video Input InterfaceBNC (1.0 Vp-p, 75Ω)
Output
Audio Output1-ch RCA(Linear, 1kΩ)
CVBS Output1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
TECHNICAL SPECIFICATION
Working temperature-10 oC ~+55 oC (14 oF ~ 131 oF)
Type
Stream TypeVideo/Video&Audio
Support Camera TypeSupport HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
General Specification
ChassisStandalone 1U chassis
Frame RateMain stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Recording ResolutionWhen 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Remote connections128
Dimensions315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Interface Type1 SATA Interface
Input
Analog and HD-TVI video input8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Audio CompressionG.711u
Audio Input1 SATA Interface
IP Video Input2-ch Up to 2MP resolution
Video CompressionH.264,H.264+
