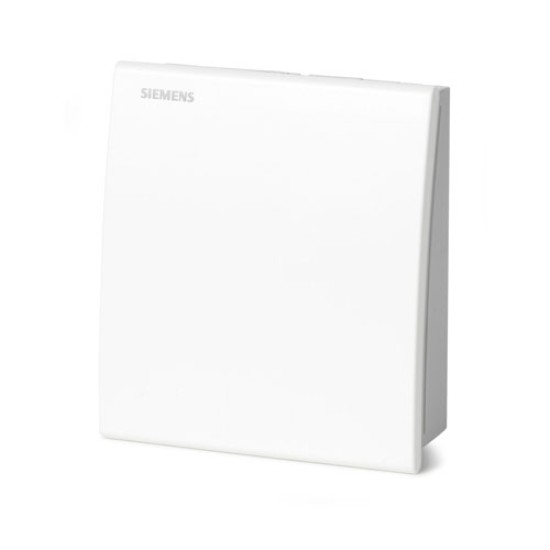

Siemens QFA2060 Room Sensor

Siemens QFA2060 Room Sensor
Inquiry
Siemens QFA2060 Room Sensor
  • Stock: Inquiry
  • Model: ROQC-19
Rs30,300/-

FEATURES:


  • Operating voltage AC 24 V or DC 13.5…35 V
  • Signal output DC 0...10 V / 4…20 mA for relative humidity
  • Signal output DC 0...10 V / 4…20 mA / LG-Ni 1000 or T1 for temperature
  • Accuracy of ±3 % r.h. within comfort range
  • Range of use -15…+50 °C / 0…95 % r.h. (non-condensing)

Document:


Summary
Measuring rangeTemperature : 0...50 °C, -35...35 °C, -40...70 °C
Signal Output HumidityDC 0...10 V
Signal Output TemperatureDC 0...10 V
Operating VoltageAC 24 V, DC 13.5...35 V
Sensing elementTemperature : DC 0...10 V
AccuracyMeasurement : At 0...95 % r.h. and 23 ºC: ±5 %, At 30...70 % r.h. and 23 ºC: ±3 %
HARDWARE FEATURES
Degree of protectionIP30
Dimensions ( W x D x H )90 x 36 x 100 mm
TECHNICAL SPECIFICATION
Measurement Range Humidity0...95 % r.h.
General Specification
Connectionelectrical : Screw terminals
Time ConstantHumidity <20 s, Temperature <8.5 min
Type Of FixingScrews
