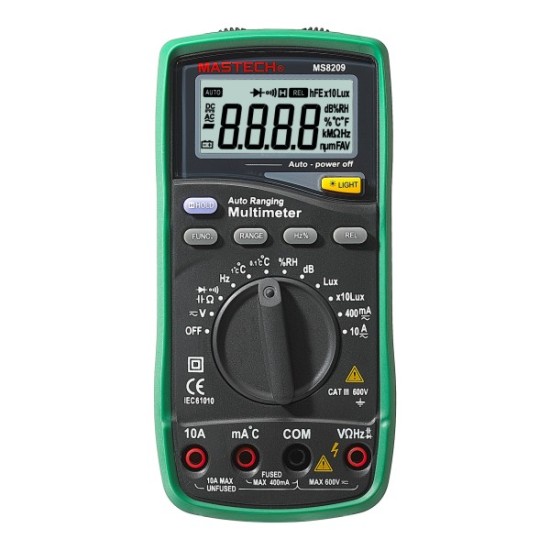

Mastech MS8209 5 in 1 Multimeter with High accuracy and resolution on all ranges, Enviormental Tester + Multi Function DMM

Mastech MS8209 5 in 1 Multimeter with High accuracy and resolution on all ranges, Enviormental Tester + Multi Function DMM
Mastech MS8209 5 in 1 Multimeter with High accuracy and resolution on all ranges, Enviormental Tester + Multi Function DMM
  • Stock: In Stock
  • Brand: Mastech
  • Model: MTDM-17
Rs8,000/-

FEATURES:

Display: 4000 counts

Autoranging

Auto Power Off

Diode: 1.5V

Continuity Buzzer: <40Ω

Relative Measurement

Data Hold

Low Battery Display

Display Backlight


OVERVIEW:

Power Supply: 1*9V 6F22 Battery

Product Size: 158mm*78mm*39mm / 6.2"*3.1"*1.5"

Product Weight: 260g/0.55lb

Safety Rating: CAT III 600V RoHS



Summary
DC Voltage400mV/4V/40V/400V/600V +-(0.7%+2)
AC Voltage4V/40V/400V/600V +-(0.8%+3)
Capacitance4nF/40nF/400nF/4µF/40µF/200µF +-(3.0%+3)
DC Current40mA/400mA +-(1.2%+3) 10A +-(2.0%+10)
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ +-(1.2%+2) 40MΩ +-(2.0%+5)
AC Current40mA/400mA +-(1.5%+5) 10A +-(3.0%+10)
Frequency9.999Hz +-(2.0%+5) 99.99Hz/999.9Hz/9.999kHz +-(1.5%+5) 99.99kHz/199.99kHz +-(2.0%+5) >200kHz Take it only as reference
Duty Cycle0.1%~99.9% +-3.0%
Temperature-20℃~1000℃ +-(2.0%+1)
Relative Humidity30%~90% +-5.0%RH
Sound Level35dB~100dB (+-3.5%dB at 94dB,1kHz sine wave) +-3.5%
Luminosity4000Lux/40000Lux +-(5.0%+10)
