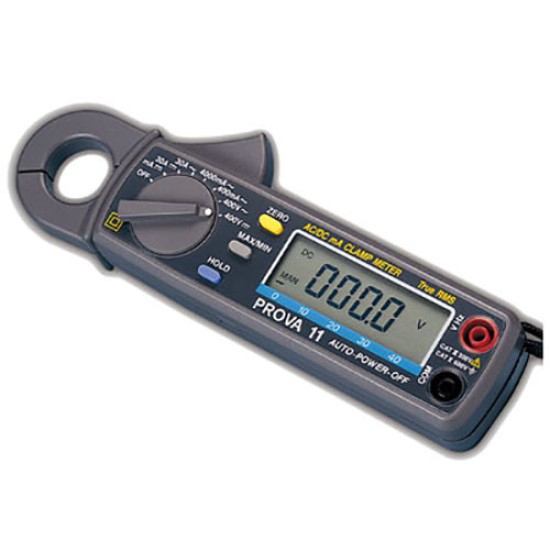

Prova 11 AC/DC mA Clamp Meter

Prova 11 AC/DC mA Clamp Meter
Inquiry
Prova 11 AC/DC mA Clamp Meter
Rs52,000/-

FEATURES:

High resolution 1mA DC and 0.1mA AC

One touch zero for DCA adjustment

Maximum conductor size 23mm (0.9 in.)

True RMS current and voltage

Continuity and frequency measurement

Fast bargraph display (20 times/sec.)


SPECIFICATION:

DC Current
RangeResolutionAccuracyOverload protection
0 - 4000mA1mA± 2.0% ± 3dgts40 amps DC
30A10mA± 2.0% ± 3dgts100 amps DC

AC Current: (True RMS, Crest Factor ≤ 3)
  AccuracyOverload Protection
RangeResolution50/60 Hz40Hz - 100Hz
400mA0.1mA± 1.5% ± 5dgts± 2.0% ± 5dgts40 amps AC
RangeResolution50/60Hz40Hz to 1kHz
4000mA1mA± 2.5% ± 5dgts± 3.0% ± 5dgts40 amps AC
30A10mA± 2.0% ± 5dgts± 2.5% ± 5dgts100 amps AC

DC Voltage: (Input impedance 10MΩ)
RangeResolutionAccuracyOverload Protection
400V0.1V± 1.0% ± 2dgts1000 volts DC

AC Voltage: (Input impedance 10MΩ, True RMS, Crest Factor < 3)
  AccuracyOverload Protection
RangeResolution50/60 Hz40Hz - 1kHz
400V0.1V± 1.5% ± 4dgts± 2.0% ± 5dgts800 volts AC

Summary
Conductor size23mm maximum
Weight190g (batteries included), 6.7oz
Distance3¾ digit LCD with 40 segment bar graph
General Specification
Operating Temperature-10°C to 50°C
Dimensions183(L) x 61(W) x 36(H)mm, (7.2" x 2.5" x 1.4")
