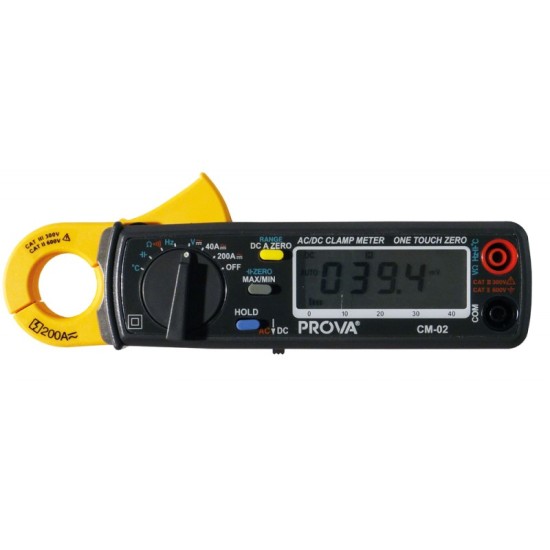

PROVA CM-02 AC/DC CLAMP METER

PROVA CM-02 AC/DC CLAMP METER
Inquiry
PROVA CM-02 AC/DC CLAMP METER
Rs25,730/-

FEATURES:

DC/AC 0.01A resolution
23mm Jaw Diameter
Temperature and Capacitance
Autorange V, Ω, Hz, °C, °F, –| |–
AC/DC 0.01A to 200A
One Touch Zero
3¾ digits, 4000 counts of resolution
Max/Min/Hold/Relative



Specifications


DC Current (23°C ± 5°C)
RangeResolutionAccuracyOverload Protection
40A10mA± 1.5% ± 2dgts400 amps DC
0-150A100mA± 1.5% ± 2dgts400 amps DC
150-200A100mA± 2.2% ± 2dgts400 amps DC


AC Current
  AccuracyOverload Protection
RangeResolution50/60 Hz40Hz - 1kHz
40A10mA± 1.5% ± 3dgts± 2.0% ± 4dgts400 amps AC
0-150A100mA± 1.5% ± 3dgts± 2.0% ± 4dgts400 amps AC
150-200A100mA± 2.2% ± 3dgts± 2.5% ± 4dgts400 amps AC


DC Voltage
RangeResolutionAccuracyInput Impedance
40mV0.1 mV± 1.5% ± 3dgts10MΩ
4V1 mV± 1.5% ± 3dgts5MΩ
40V10 mV± 1.5% ± 3dgts5MΩ
400V100 mV± 1.5% ± 3dgts5MΩ
600V1V± 1.5% ± 3dgts5MΩ


Continuity: (Open voltage 0.4V, overload protection AC 600V)
RangeResolutionAccuracyOverload Protection
40-400Ω0.1Ω± 1.0% ± 2dgts< 40.0Ω (approx)


AC Voltage: (Input impedance 5 MΩ)
  AccuracyOverload Protection
RangeResolution50/60 Hz40Hz - 1kHz
0.01-4V1 mV± 1.5% ± 5dgts± 2.0% ± 5dgts800 volts AC
40V10 mV± 1.5% ± 5dgts± 2.0% ± 5dgts800 volts AC
400V100 mV± 1.5% ± 5dgts± 2.0% ± 5dgts800 volts AC
600V1V± 1.5% ± 5dgts± 2.0% ± 5dgts800 volts AC


Resistance: (Open voltage 0.4V)
RangeResolutionAccuracyOverload Protection
400Ω0.1Ω± 1.5% ± 2dgts600 volts AC
4kΩ± 1.5% ± 2dgts600 volts AC
40kΩ10Ω± 1.5% ± 2dgts600 volts AC
400kΩ100Ω± 1.5% ± 2dgts600 volts AC
4MΩ1kΩ± 1.5% ± 2dgts600 volts AC
40MΩ10kΩ± 1.5% ± 2dgts600 volts AC


Frequency: (Auto, sensitivity selected by pressing RANGE button)
RangeResolutionAccuracySensitivityOL Protection
100Hz-100kHz0.01 - 100Hz± 0.5% ± 2dgts0.01/0.1/1V600 volts AC


Temperature: (Type K thermocouple with Adapter, °C or °F)
RangeResolutionAccuracyOverload Protection
-40°C to 0°C0.1 °C± 2% ± 2°C600 volts AC
0°C to 400°C0.1 °C± 0.5% ± 2°C600 volts AC
400°C to 1000°C1 °C± 0.5% ± 2°C600 volts AC
-40°F to 0°F0.1 °F± 2% ± 4°F600 volts AC
0°F to 400°F0.1 °F± 0.5% ± 4°F600 volts AC
400°F to 1000°F1 °F± 0.5% ± 4°C600 volts AC


Capacitance
RangeResolutionAccuracyOverload Protection
4nF1pF± 5% ± 0.2nF600 volts AC
40nF10pF± 5% ± 0.2nF600 volts AC
400nF0.1nF± 3% ± 0.2nF600 volts AC
4μF1nF± 3% ± 0.02μF600 volts AC
40μF10nF± 3% ± 0.02μF600 volts AC

General Specifications Applicable standards EN 61010-2-032, CAT II 600V, CAT III 300V, Pollution Degree 2 Conductor size 23mm maximum Display 3¾ digit LCD with 40 segment bar graph Operating temperature -10°C to 50°C Dimensions 183(L) x 64(W) x 36(H)mm, (7.2" x 2.5" x 1.4") Weight 190g (batteries included), 6.7oz Accessories included User's Manual, Batteries, Adapter (for capacitance and thermocouple), Carrying Bag
