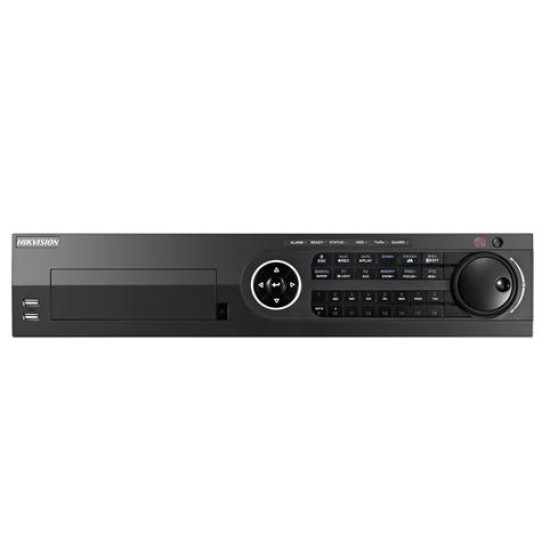

HIKVISION DS-8132HGHI-SH Embedded Hybrid DVR

HIKVISION DS-8132HGHI-SH Embedded Hybrid DVR
HIKVISION DS-8132HGHI-SH Embedded Hybrid DVR
  • Stock: In Stock
  • Brand: Hikvision
  • Model: NSND-38
Rs34,900/-

FEATURE:


  • H.264 & Dual-stream video compression
  • Support HD-TVI/analog/IP camera triple hybrid
  • Support both HD-TVI and analog cameras with adaptive access
  • Full channel@1080P resolution real-time recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • Long transmission distance over coax cable
  • Support up to 24/32-ch synchronous playback at 1080P resolution

POWER
Consumption≤ 67W
Summary
CapacityUp to 6 TB capacity for each disk
Weight≤8Kg (17.6 lb)
HARDWARE FEATURES
Power Supply100 ~ 240VAC, 47 ~ 63HZ
Interface
Audio Input InterfaceRCA (2.0 Vp-p, 1 kΩ)
Network Interface2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
Serial Interface1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
USB Interface3 USB2.0 interfaces
Video Input InterfaceBNC (1.0 Vp-p, 75Ω)
Output
HDMI/VGA Output1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
HDMI1/VGA and HDMI21920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Type
Support Camera Type720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS
General Specification
Chassis19-inch rack-mounted 2U chassis
Recording ResolutionMain stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF Sub-stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA
Dimensions445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)
Interface Type8 SATA interfaces for 8 HDDs; 1 eSATA interface
Input
Analog and HD-TVI video input32-ch, BNC interface (1.0Vp-p, 75 Ω)
Audio CompressionG.711u
Audio Input16-ch
IP Video Input16-ch (up to 32-ch) Up to 2MP resolution
Video CompressionH.264
